Product Details

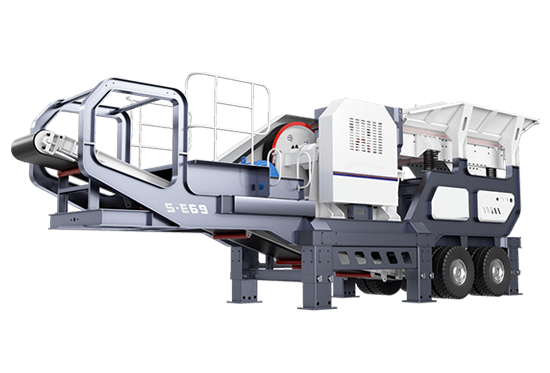

This is one of the latest developments of STM. The equipment combines revolutionary design, high performance and advanced crushing technologies, which make the model one of the most popular crushers on the market. This modernized version of the basic model of the STM heavy industry crusher has a phenomenal capacity of 50-240 tons per hour. With its high performance and numerous other innovative advantages, the crusher stands out from the rest.
Benefits Features
High performance
In the mobile crusher, the spacious PE jaw crusher has the highest material processing capacity among its class machines and is easy to maintain.
Extremely High Mobility
The hydraulic motion control system and high speed allow the crusher to easily move from one platform to another. The installation also uses a wheeled chassis.
Maximum Reliability
When installing PE Jaw Crusher with high efficiency, multifunctionality, Mobile Crushing Plant has a simple and rational design, so that the operation and maintenance of this equipment is simple and convenient.
1.Mobile Jaw Crusher
| Model | YG830E46 | YG938E57 | YG938E69 | YG114E710 | YG134E912 |
| Transport Length | 8600 | 9800 | 11000 | 13000 | 14000 |
| Length with diesel | 10000 | 11600 | 12000 | 14000 | 15500 |
| Transport Width | 2450 | 2450 | 2450 | 2450 | 3000 |
| Transport height | 3800 | 3500 | 3600 | 4500 | 4800 |
| Work Length | 12000 | 13300 | 13200 | 15000 | 17000 |
| Work Width | 2800 | 2900 | 2900 | 2900 | 3100 |
| Work height | 3800 | 4100 | 4600 | 5800 | 5800 |
| масса | 22 | 28 | 37 | 53 | 81 |
| Chassis | Single axis | biaxial | biaxial | triaxial | four axis |
| Jaw crusher model | PE400X600 | PE500X750 | PE600X900 | PE750X1060 | PE900X1200 |
| Poppy food sizes | 350 | 425 | 480 | 630 | 750 |
| Range of regulation output. cracks(mm) | 40-100 | 50-100 | 65-160 | 80-140 | 95-165 |
| Performance（T/h） | 40-100 | 50-100 | 60-130 | 80-180 | 140-260 |
| Feeder model | GZD-850X300 | GZD-960X380 | GZD-960X380 | GZD-1100X4200 | GZD-1300X4900 |
| Conveyor model | B650X7M | B650X7.5M | B800X8M | B1000X9M | B1200X11M |
2.Mobile Impact Crusher
| Model | Y3S154F1010 | Y3S184F1210 | Y3S186F1214 | Y3S216F1315 |
| Transport Length | 11000 | 11600 | 12800 | 13500 |
| Transport Width | 2450 | 2800 | 2800 | 3000 |
| Transport height | 3900 | 4400 | 4400 | 4500 |
| Work Width | 2800 | 3150 | 3150 | 3500 |
| Work height | 5700 | 6000 | 6400 | 6700 |
| weight | 32 | 38 | 44 | 54 |
| Chassis | Single axis | biaxial | biaxial | triaxial |
| Impacr crusher model | PF-1010 | PF-1210 | PF-1214 | PF-1315 |
| Entry Size | 400*1080 | 400*1080 | 400*1430 | 860*1520 |
| Poppy food sizes | 350 | 350 | 350 | 500 |
| Performance（T/h） | 50-250 | 70-300 | 90-400 | 120-450 |
| Conveyor model | B650X7M | B650X7M | B800X8M | B800X8M |
| Screen model | 3YZS1548 | 3YZS1848 | 3YZS1860 | 3YZS2160 |
3.Mobile cone crusher
| Model | Y3S154Y55 | Y3S184Y75 | Y3S186Y160 | Y3S216Y220 |
| Transport Length | 12000 | 12000 | 13500 | 13500 |
| Transport Width | 2550 | 2800 | 2800 | 3000 |
| Transport height | 3900 | 3900 | 4200 | 4200 |
| Work Length | 13700 | 13700 | 15200 | 15200 |
| Work Width | 2800 | 3150 | 3150 | 3500 |
| Work height | 5700 | 5700 | 6400 | 6400 |
| weight | 32 | 37 | 53 | 51 |
| Chassis | biaxial | biaxial | triaxial | triaxial |
| Cone crusher model | PYB900 | CS75 | CS160 | HPC-220 |
| Poppy food sizes | 115 | 102 | c-150、f-76 | c-225\f-86 |
| Range of regulation output. cracks (мм) | 15-50 | 9-38 | C13、F6 | C13、F6 |
| Performance（T/h | 50-90 | 45-165 | c120-240、f55-180 | c150-430、f90-260 |
| Conveyor model | B650X7M | B650X7M | B800X8M | B1000X8M |
| Screen model | 3YZS1548 | 3YZS1848 | 3YZS1860 | 3YZS2160 |
