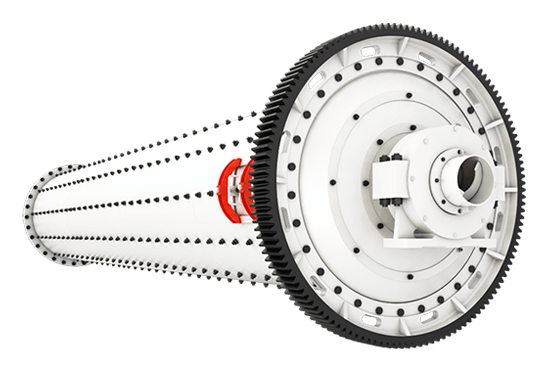

Ball Mill

This type of machine are widely used in mineral , metallurgy, chemical industry, building materials, coal, matallugrge, powder with material mositure under 8% and hardness below 8 class. The finess of the final products can be adjusted during the range from feldspar, calcite, limestone, dolomite, graphite, gold and silver ore, rutile, aluminum, titanium dioxide, kaolin, bentonite, flint clay, fluorite, wollastoniteore, phosphate rock, silicon metal, electrolytic fierce, coking, corundum, silicon smelting, calcic magnestie mine, coal, actiated carbon, plant ash, coal gangue, slag, ziron sand, iron ore, potash feldspar, talc, granite, marble, barite, wax, feldspar, clay, glass, coke, pet coke, fly ash, yanliu, clay ceremsite sand, salt mud, sand, additives, curing agent, waste, waste brick of pottery and porcelain and refactory materials.

Benefits Features

1. Large application range, simple structure and convenient maintenance;

2. Large capacity and continuous work are obvious advantages;

3. Various barrel lining and grinding media, excellent corrosion resistance;

4. Installation and adjustment are very convenient and easy to operate.

5.Cylinder is rolled and welded with Q235B steel plate. (the steel thickness is generally 1/100 of the cylinder diameter, for example ball mill of Φ1500, the steel plate thickness is 16 mm), the material of inlet and outlet hollow shaft is ZG35.

6. The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably.
